产品概述：

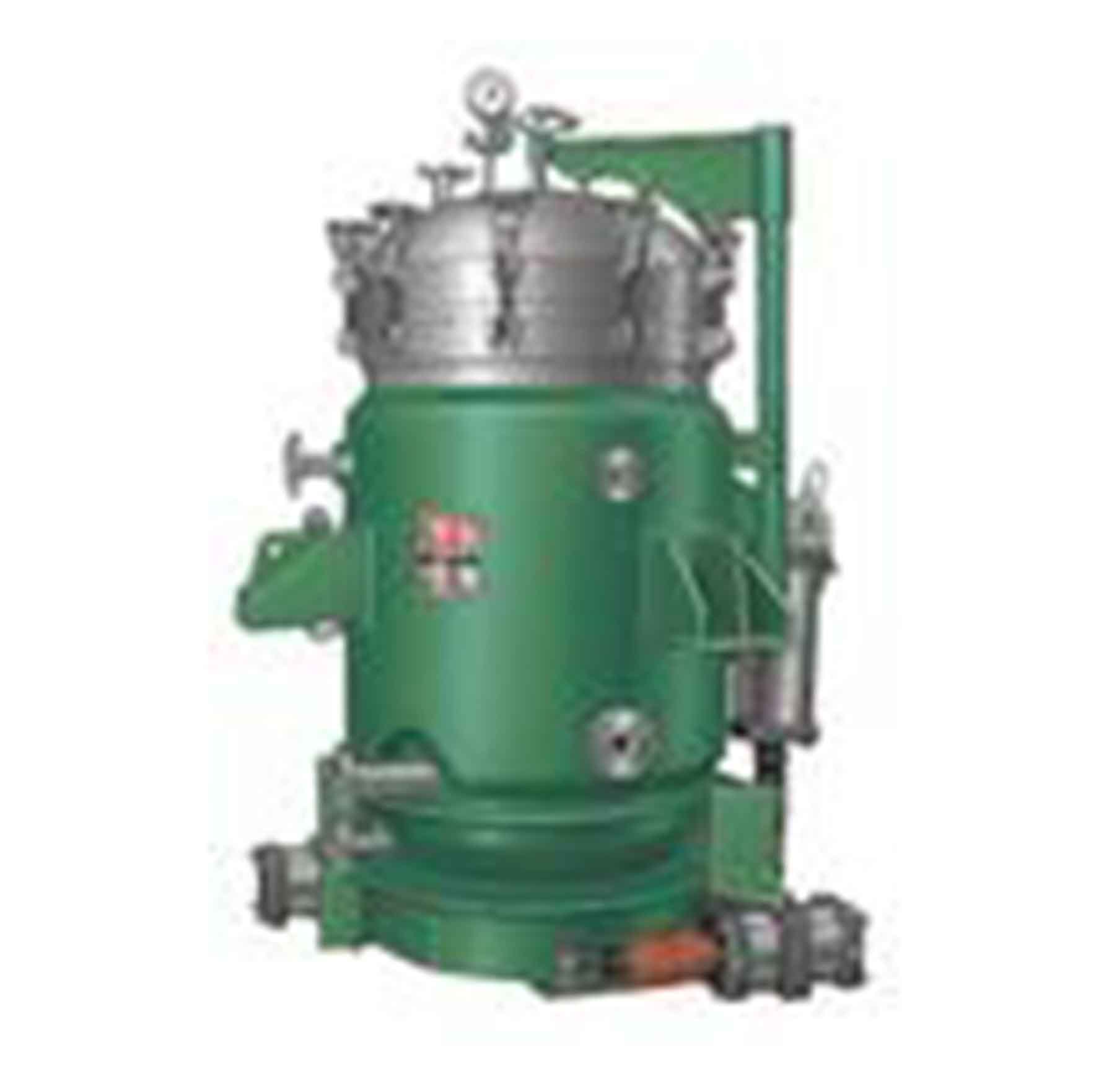

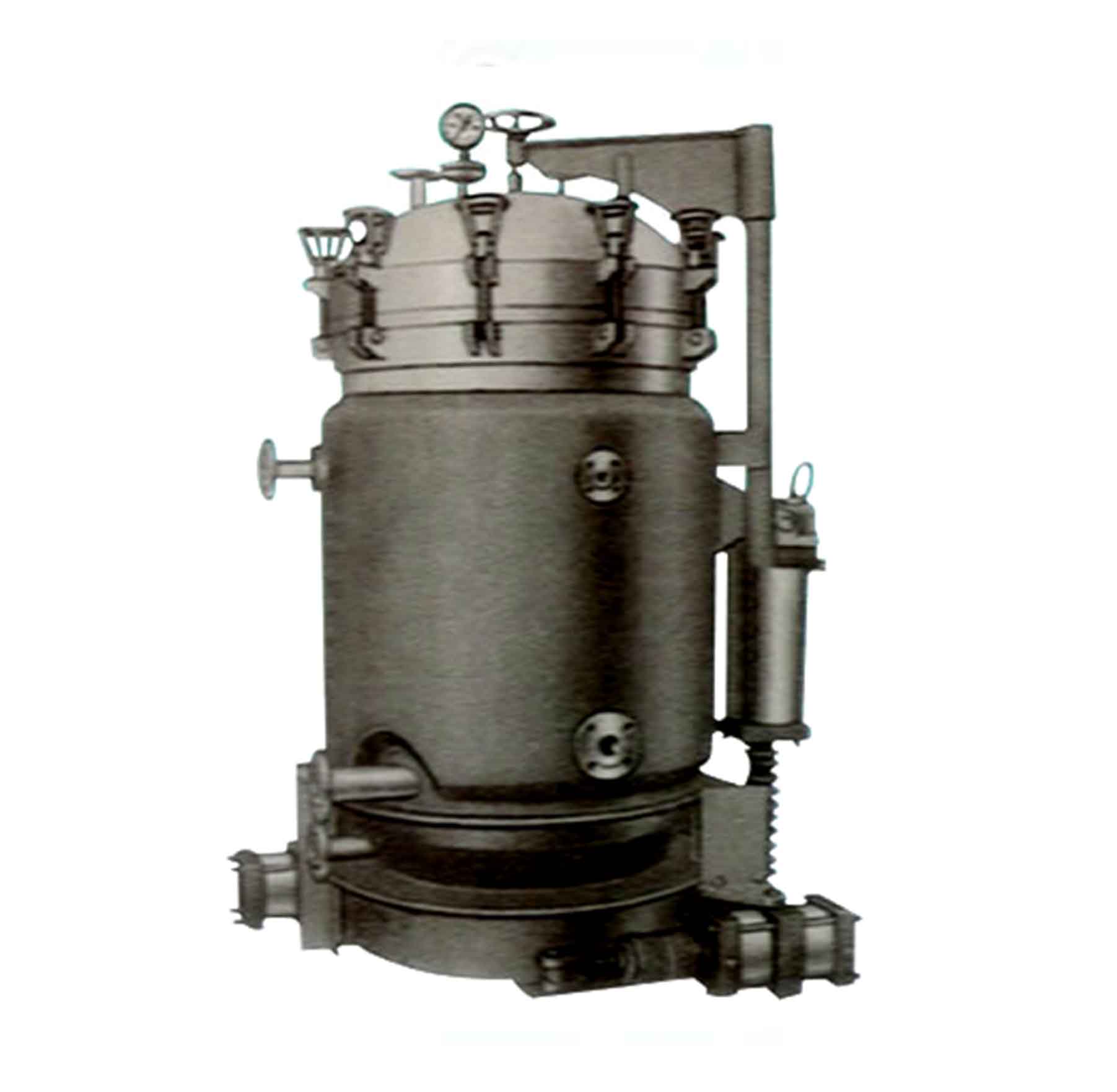

ABF 系列全自动板式密闭过滤机是一种高效、节能、全自动密闭工作的精密澄清过滤设备。它广泛应用于化工、石油、食品、制药等行业。由于其设备的独特结构，它具有无与伦比的特点。
1.完全密闭过滤、无泄漏、无任何环境污染。
2.一次过滤完全澄清，过滤精度可达PPM级。
3.滤液回收完全，没有残液。
4.过滤不用滤纸、滤布、过滤成本十分低。
5.只要轻轻一按控制按钮，排渣口即能自动打开，滤渣便能十分方便自动排除。
6.滤液、滤渣能共同回收。
7.与计算机联接，整个过滤过程实现全自动化。
8.过滤温度不受限制，操作人员少，方法简便。
9.设备费和运行费低廉，维护和保养十分方便。
10.该设备达到国际同类先进产品水平。
PRODUCT OVERVIEW:
ABF series automatic plate type hermetic filter is the fine clarifying and filtering equipment with high-efficiency and energy-saving. It is widely used in chemical,petroleum,food and pharmaceutical industry. With its unique structure, it has incomparable advantages.
1.Fully hermetic filtering operation, no leakage, no pollution.
2.Once filtering complete clarified, it filtering precision up to PPM.
3.Low filtration cost, and no need of filter paper and filer cloth.
4.Complete recovery, without residual filtrate.
5.The residue is easy to be automatically discharged, only pressing a controlled button.
6.Recovery the filtrate and the filtering residues together.
7.Combined with a computer, the whole filtering process are completely automatic.
8.No limit of the filtering temperature, less labor force and easy to operate.
9.Less cost of production, and easy to repair and maintain.
10.The equipment had reached the advance level in the world.
技术参数：TECHNICAL DATA：
|
型号 Model |
过滤面积 Filtration Area (㎡) |
处理能力（T/h） Treatment Capacity |
工作压力（Mpa） Work pessure |
过滤缸容积 Machine Volune (L) |
重量 Weight (kg) |
外形尺寸 Outline dimension 长×宽×高 （mm） |
|||
|
食品 Food |
石化 Petroch emistry |
油脂 Oil |
额定压力Rated Pressure |
最高压力 Max Pressure |
|||||
|
ABF-5 |
5 |
2-3 |
2-5 |
1-1.2 |
0.1-0.4
|
0.5
|
600 |
2100 |
1500×1300×1950 |
|
ABF-7 |
7 |
4-6 |
5-7 |
1.4-2 |
780 |
2500 |
1600×1400×2000 |
||
|
ABF-10 |
10 |
6-8 |
7-9 |
2-3 |
1200 |
2800 |
1700×1500×2320 |
||
|
ABF-15 |
15 |
9-12 |
11-13 |
3-5 |
2000 |
3800 |
2050×2100×1900 |
||
|
ABF-20 |
20 |
12-16 |
15-17 |
5-7 |
2200 |
4200 |
2050×2100×2200 |
||
|
ABF-25 |
25 |
15-20 |
19-21 |
7-9 |
2500 |
4500 |
2050×2100×2600 |
||
|
ABF-30 |
30 |
18-24 |
23-25 |
9-11 |
4700 |
5800 |
2600×2500×3600 |
||
|
ABF-35 |
35 |
21-27 |
27-29 |
11-13 |
4900 |
6500 |
2600×2500×3800 |
||
