产品概述：

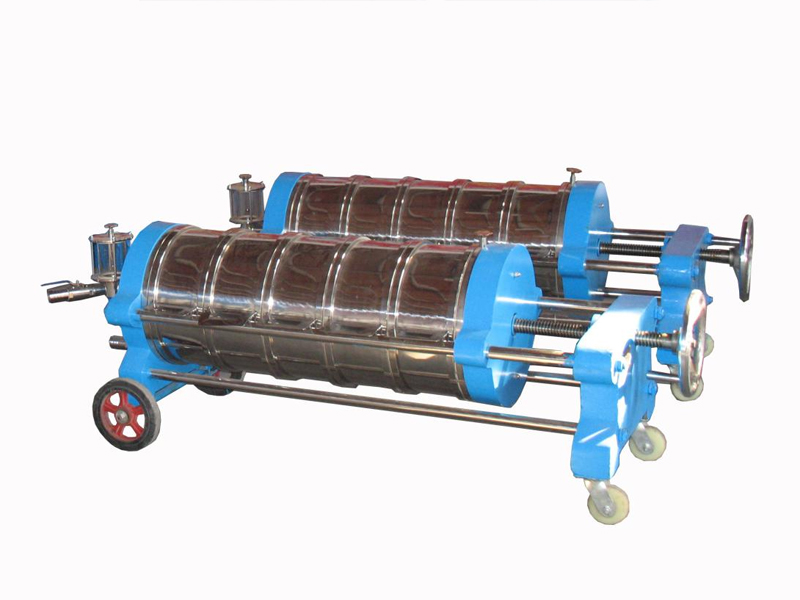

该过滤机系引进国外先进技术，采用优质不锈钢制作，采用硅藻土作助滤剂。
该过滤机使我国饮料行从陈旧的棉饼过滤工艺向世界先进过滤工艺行列迈进了一大步。它具有外形美观、操作简单、过滤成本低、效率高等特点，过滤澄清度可达99.8%。操作得当甚至可滤除大肠杆菌。该机已在白酒、黄酒、果酒、水处理等行业广泛应用，并获得好评。我公司愿为您在过滤工序中取得良好的过滤效果而尽力，同时确保易损件的供应。
PRODUCT OVERVIEW:
This filter imports foreign advanced technology and uses the high-qulity stainless steel with diatomite as filter aids . It promotes beverage industry a big step from old MianBing filtering process to world`s advanced ranks . It has characteristics like beautiful appearance , easy operation , low filtering cost , high efficiency and so on , Filtering clarity can reach 99.8% . When managed correctly , it even can remove escherichia coil.
This machine is widely used in yellow wine , white wine , fruit wine industries , and has gained critical praise , our company would like to try hard for you to achieve good effect , meanwhile, ensuring the supply of wearing parts.
技术参数：TECHNICAL DATA：
|
型号 Model |
外径尺寸 External Dimension (mm) |
滤片面积 Filter Area (m2) |
滤片数量 QTY of filter () |
阀门口径 Valves Caliber |
理论流量 Flow rate m3/h |
工作压力 Working Pressure (Mpa) |
|
WK220 |
900*300*400 |
1.00 |
15 |
DN32 |
1-2. |
≤0.2 |
|
WK250 |
1100*350*450 |
2.00 |
20 |
1-3. |
||
|
WK330-15 |
1600*600*750 |
2.50 |
15 |
2-4. |
||
|
WK330-20 |
1700*600*750 |
3.40 |
20 |
3-5. |
||
|
WK400-20 |
1840*680*800 |
5.10 |
20 |
6-8. |
||
|
WK400-38 |
2350*680*800 |
9.80 |
38 |
9-12. |
||
|
WK500-20 |
1950*750*850 |
8.90 |
20 |
8-10. |
||
|
WK550-38 |
2450*750*850 |
15.90 |
38 |
15-20. |
