产品概述：
适用范围：精细化工、塑料、燃料、电镀、油脂、润滑油、陶瓷、玻璃、氯碱工业、制药等行业的过滤、吸附和贵金属催化剂、沸石等固体的回收。

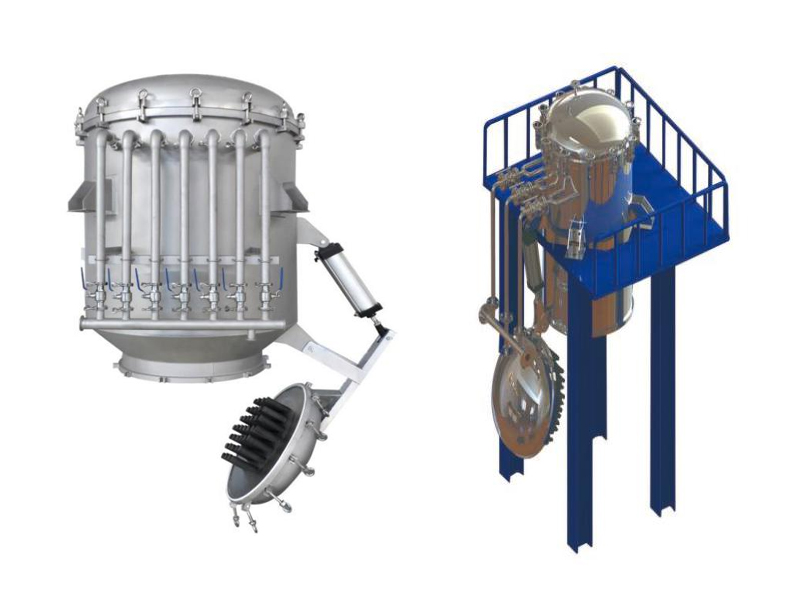

产品简介：PHZS-B系列自清式滤芯过滤机是一种高效、节能自动密闭过滤的精密澄清设备。
具有以下特点：
1.完全密闭过滤，无泄漏，无任何环境污染。
2.滤芯设计采用复式结构，应用领域广，过滤效果好。
3.能实现一次性完全过滤。
4.虑饼可进行洗涤、干燥，以获得最大的经济效益。
5.采用气体反吹排渣，排渣干净迅速，适应多种粘稠物料。
6.整个过滤过程可实现全自动化。
PRODUCT OVERVIEW:
The filtration，adsorption and solid recovery of metal catalyzer，zeolite etc，in the industries of fine chemical，plastic，fuel，electricity，grease，lubricant，porcelain，glass，alkali etc.
Product introduction:PHZS-B Series Self-Clean Filtering Core Filter is a kind of clarifying separation equipment with high-efficiency，energy-saving and enclosed operation.
It has traits as follows:
1.Completely enclosed filtration，no leakage，no pollution.
2.The filtering core adopts component structure which can be used widely and excellent filtering effect.
3.It can achieve thoroughly filtration one time.
4.Filter cake can be washed and dried and it can achieve the best economical benefit.
5.Adopting air blowing in reverse to discharge the residue which is rapid and clean，and also used in various sticky materials.
6.The whole process can achieve completely full-Automatization.
技术参数：TECHNICAL DATA：
|
型 号 (Model) |
RHZS-B-1 |
RHZS-B-3 |
RHZS-B-5 |
RHZS-B-8 |
RHZS-B-10 |
RHZS-B-20 |
RHZS-B-30 |
RHZS-B-40 |
RHZS-B-60 |
RHZS-B-80 |
RHZS-B-100 |
|
机体材质 Body material |
304/316L/Q235 内衬PO、橡胶、PTFE |
||||||||||
|
过滤面积(㎡) |
1 |
3 |
5 |
8 |
10 |
20 |
30 |
40 |
60 |
80 |
100 |
|
处理能力 (m3) |
根据具体物料的实验数据确定 |
||||||||||
|
工作压力(Mpa) |
≤0.25 |
||||||||||
|
工作温度(℃) |
≤110 |
||||||||||
|
机体直径(mm) |
350 |
600 |
800 |
1000 |
1200 |
1600 |
1600 |
1600 |
2000 |
2200 |
2200 |
|
滤饼体积 (m3) |
0.06 |
0.06 |
0.1 |
0.16 |
0.2 |
0.4 |
0.6 |
0.8 |
1.2 |
1.6 |
2 |
|
进出口径(mm) |
DN25 |
DN25 |
DN32 |
DN40 |
DN40 |
DN65 |
DN65 |
DN65 |
DN65 |
DN65 |
DN65 |
|
排渣口径（mm） |
DN150 |
DN300 |
DN550 |
DN550 |
DN800 |
DN1000 |
DN1000 |
DN1000 |
DN1400 |
DN1600 |
DN1600 |
